R ile Doğrusal Regresyon

Polinom Modeli

Burada, 1974 Motor Trend US dergisinden alınan mtcars {datasets} adlı bir verimiz var ve 32 otomobil (1973-74 modelleri) için yakıt tüketimi ve otomobil tasarımı ve performansının 10 yönünü içermektedir. Ağırlık (wt) ve Motor Hacmi (disp) parametreleri arasında matematiksel bir model bulacağız. Hadi en uygun modeli bulalım. Lütfen grafiği çizin, denklemin derecesini belirleyin (birinci, ikinci veya üçüncü) ve eğriyi çizin.

mtcars

                   mpg cyl  disp  hp drat    wt  qsec vs am gear carb
Mazda RX4         21.0   6 160.0 110 3.90 2.620 16.46  0  1    4    4
Mazda RX4 Wag     21.0   6 160.0 110 3.90 2.875 17.02  0  1    4    4
Datsun 710        22.8   4 108.0  93 3.85 2.320 18.61  1  1    4    1
Hornet 4 Drive    21.4   6 258.0 110 3.08 3.215 19.44  1  0    3    1
Hornet Sportabout 18.7   8 360.0 175 3.15 3.440 17.02  0  0    3    2
Valiant           18.1   6 225.0 105 2.76 3.460 20.22  1  0    3    1
Duster 360        14.3   8 360.0 245 3.21 3.570 15.84  0  0    3    4
Merc 240D         24.4   4 146.7  62 3.69 3.190 20.00  1  0    4    2
Merc 230          22.8   4 140.8  95 3.92 3.150 22.90  1  0    4    2
 [ reached 'max' / getOption("max.print") -- omitted 23 rows ]

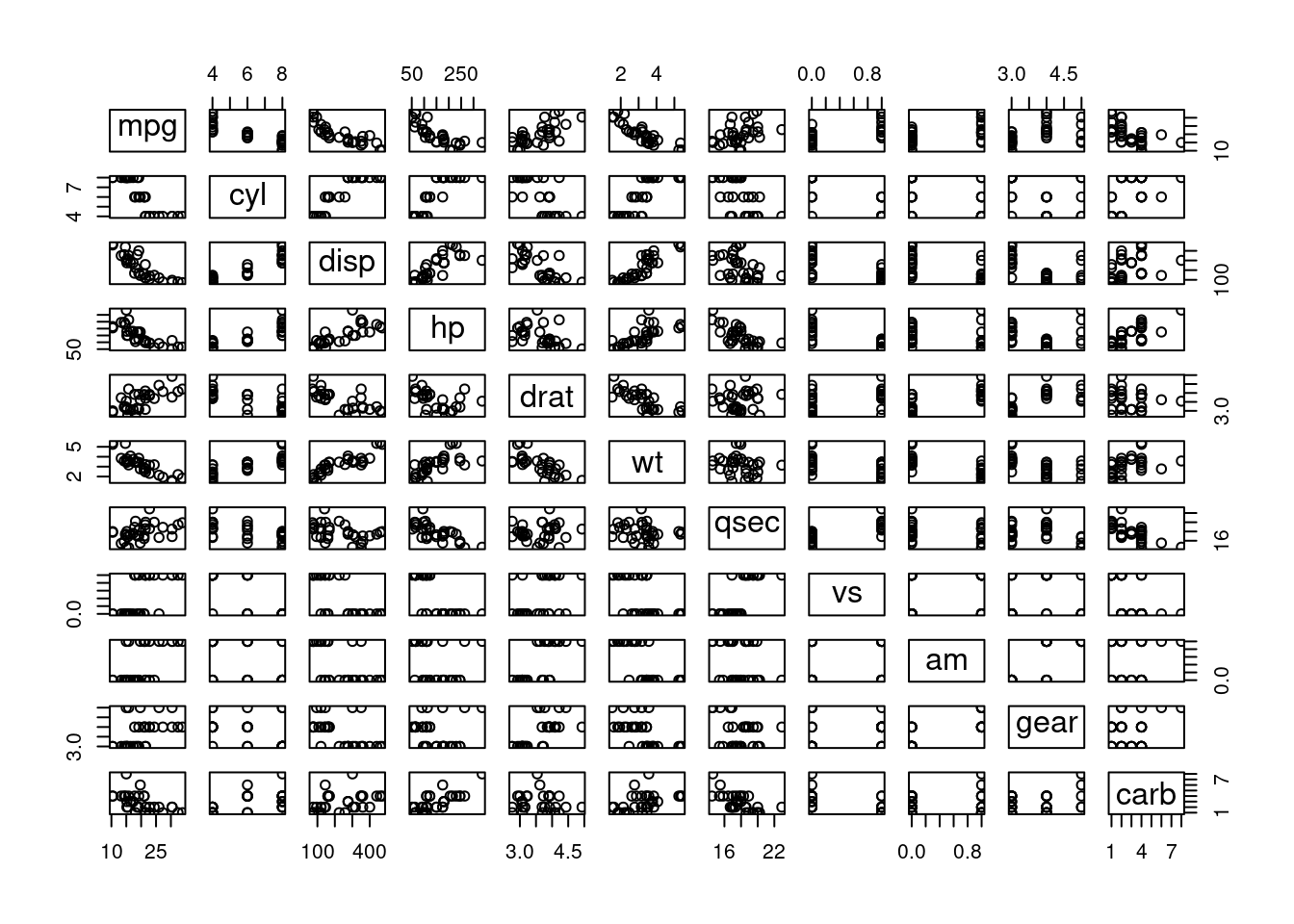

plot(mtcars)

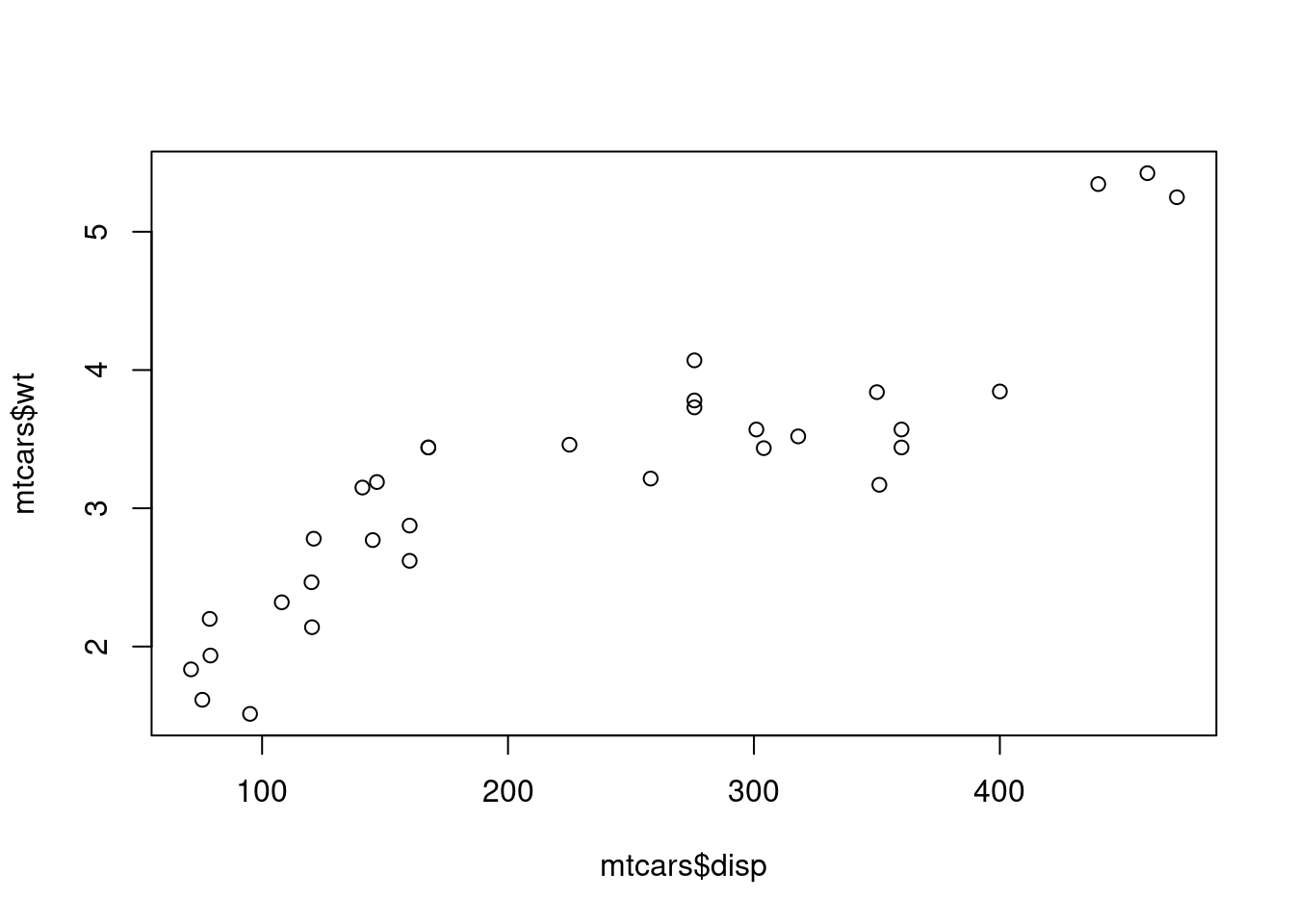

plot(mtcars$disp, mtcars$wt)

first_wd <- lm(wt ~ disp, data=mtcars)
summary(first_wd)


Call:
lm(formula = wt ~ disp, data = mtcars)

Residuals:
     Min       1Q   Median       3Q      Max
-0.89044 -0.29775 -0.00684  0.33428  0.66525

Coefficients:
             Estimate Std. Error t value Pr(>|t|)
(Intercept) 1.5998146  0.1729964   9.248 2.74e-10 ***
disp        0.0070103  0.0006629  10.576 1.22e-11 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 0.4574 on 30 degrees of freedom
Multiple R-squared:  0.7885,    Adjusted R-squared:  0.7815
F-statistic: 111.8 on 1 and 30 DF,  p-value: 1.222e-11

second_wd <- lm(wt ~ disp + I(disp^2), data=mtcars)
summary(second_wd)


Call:
lm(formula = wt ~ disp + I(disp^2), data = mtcars)

Residuals:
     Min       1Q   Median       3Q      Max
-0.88654 -0.29136 -0.00961  0.32389  0.67010

Coefficients:
             Estimate Std. Error t value Pr(>|t|)
(Intercept) 1.631e+00  3.622e-01   4.502 0.000101 ***
disp        6.694e-03  3.325e-03   2.013 0.053448 .
I(disp^2)   6.206e-07  6.380e-06   0.097 0.923178
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 0.4652 on 29 degrees of freedom
Multiple R-squared:  0.7886,    Adjusted R-squared:  0.774
F-statistic: 54.08 on 2 and 29 DF,  p-value: 1.639e-10

third_wd <- lm(wt ~ disp + I(disp^2) + I(disp^3), data = mtcars)
summary(third_wd)


Call:
lm(formula = wt ~ disp + I(disp^2) + I(disp^3), data = mtcars)

Residuals:
     Min       1Q   Median       3Q      Max
-0.63764 -0.22785  0.00307  0.24614  0.58333

Coefficients:
              Estimate Std. Error t value Pr(>|t|)
(Intercept) -1.111e+00  5.651e-01  -1.966   0.0593 .
disp         4.945e-02  8.198e-03   6.032 1.68e-06 ***
I(disp^2)   -1.807e-04  3.361e-05  -5.378 9.88e-06 ***
I(disp^3)    2.243e-07  4.119e-08   5.446 8.21e-06 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 0.3299 on 28 degrees of freedom
Multiple R-squared:  0.8973,    Adjusted R-squared:  0.8863
F-statistic: 81.57 on 3 and 28 DF,  p-value: 5.959e-14

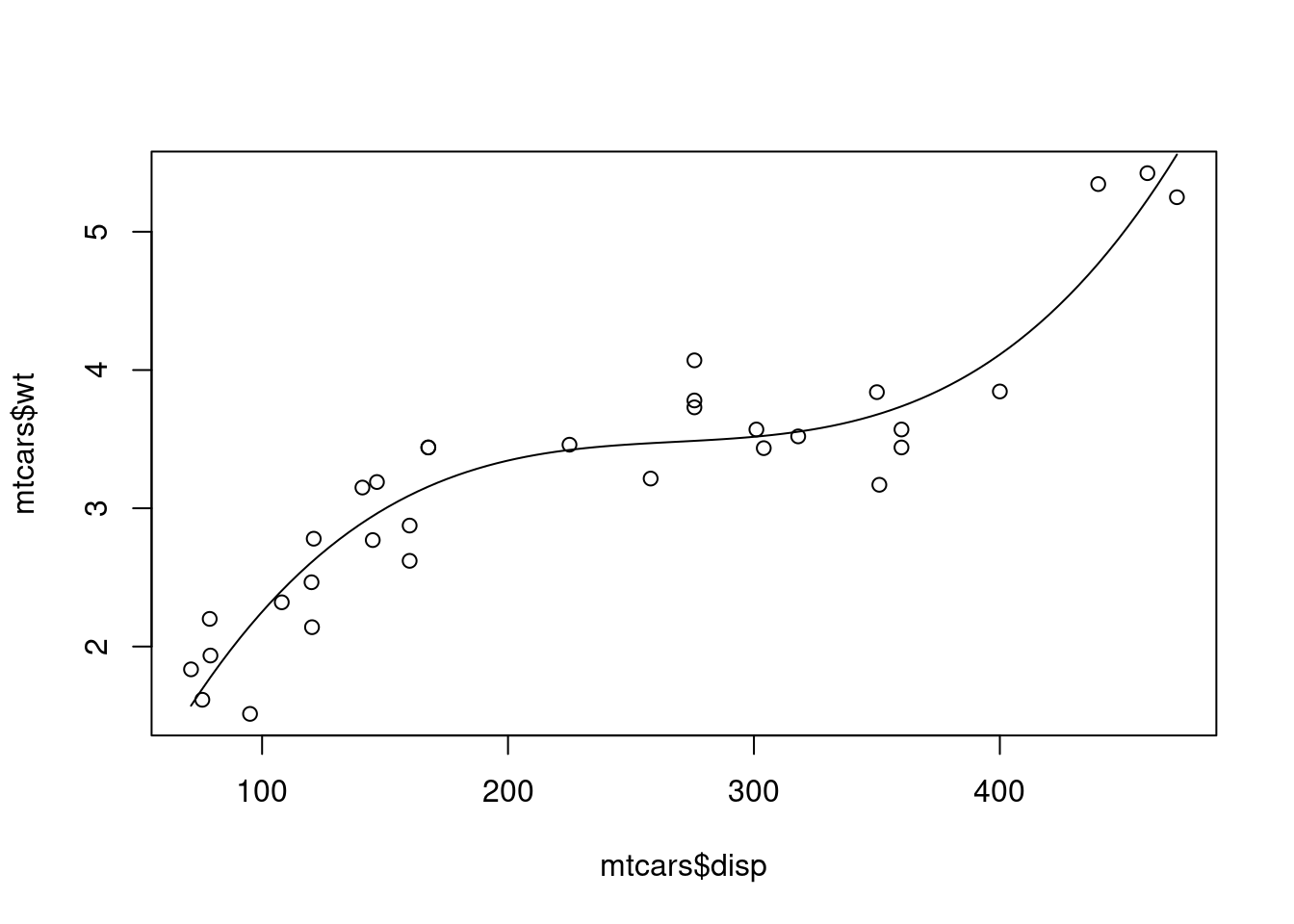

plot(mtcars$disp,mtcars$wt)
curve(2.243e-07*x^3 -1.807e-04*x^2 +4.945e-02*x -1.111e+00,add=TRUE)

best_model <- lm(wt ~ poly(disp,15), data=mtcars)
summary(best_model)


Call:
lm(formula = wt ~ poly(disp, 15), data = mtcars)

Residuals:
     Min       1Q   Median       3Q      Max
-0.43800 -0.11202 -0.00364  0.16319  0.37783

Coefficients:
                   Estimate Std. Error t value Pr(>|t|)
(Intercept)       3.2172500  0.0509709  63.119  < 2e-16 ***
poly(disp, 15)1   4.8375552  0.2883350  16.778 1.41e-11 ***
poly(disp, 15)2   0.0452475  0.2883350   0.157   0.8773
poly(disp, 15)3   1.7965723  0.2883350   6.231 1.20e-05 ***
poly(disp, 15)4   0.4463962  0.2883350   1.548   0.1411
poly(disp, 15)5  -0.6866393  0.2883350  -2.381   0.0300 *
poly(disp, 15)6  -0.3384161  0.2883350  -1.174   0.2577
poly(disp, 15)7  -0.6134397  0.2883350  -2.128   0.0493 *
poly(disp, 15)8   0.0528245  0.2883350   0.183   0.8569
poly(disp, 15)9   0.0814084  0.2883350   0.282   0.7813
poly(disp, 15)10 -0.0654665  0.2883350  -0.227   0.8233
poly(disp, 15)11  0.2853853  0.2883350   0.990   0.3370
poly(disp, 15)12 -0.0007108  0.2883350  -0.002   0.9981
poly(disp, 15)13  0.4495723  0.2883350   1.559   0.1385
poly(disp, 15)14 -0.0699728  0.2883350  -0.243   0.8113
poly(disp, 15)15 -0.5031480  0.2883350  -1.745   0.1002
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 0.2883 on 16 degrees of freedom
Multiple R-squared:  0.9552,    Adjusted R-squared:  0.9132
F-statistic: 22.73 on 15 and 16 DF,  p-value: 5.551e-08

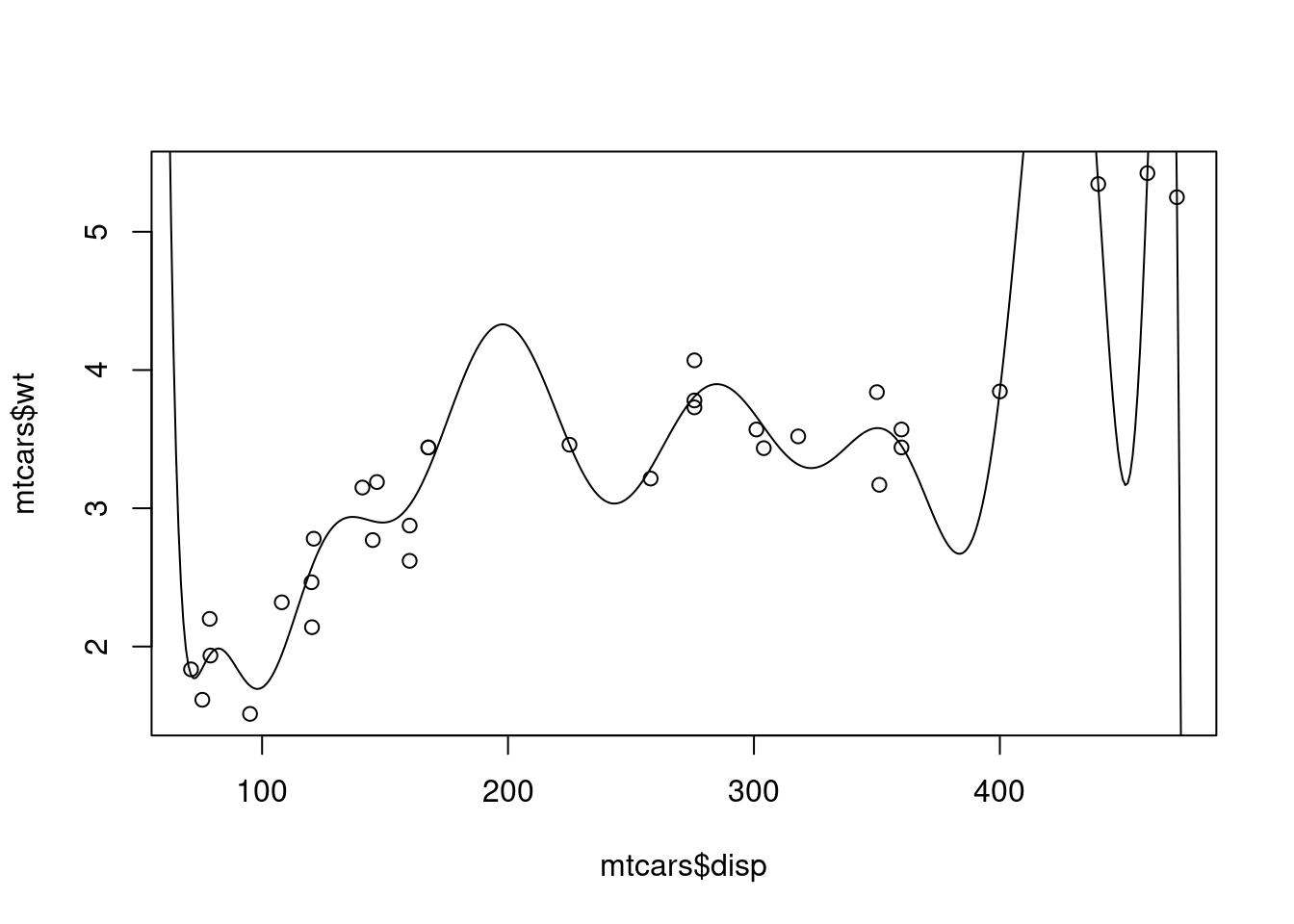

pred <- predict(best_model, data.frame(disp=50:500))
plot(mtcars$disp, mtcars$wt)
points(50:500, pred, type="l")

predict(third_wd, data.frame(disp=420))

       1
4.397246

predict(best_model, data.frame(disp=420))

       1
7.329183

predict(best_model, data.frame(disp=c(20,420, 500)))

           1            2            3
 3865.329736     7.329183 -1513.538298

Yani, “best_model” model aslında hiç de en iyi değil..

Eğitim/Test Bölünmesi (Train/Test split)

Aşırı öğrenme (overfitting)](https://www.investopedia.com/terms/o/overfitting.asp) konusunu anlayalım.

Veriyi eğitim ve test olarak bölelim. Modeli “eğitim” verisiyle eğitelim. Sonra “test” verisiyle tahmin yapalım.

sample(1:32, 5, replace=FALSE)

[1]  9  6 20 17  5

set.seed(2)
idx <- sample(1:32, 5, replace=FALSE)
idx

[1] 21 15  6 30  8

test <- mtcars[idx,]

test

                    mpg cyl  disp  hp drat    wt  qsec vs am gear carb
Toyota Corona      21.5   4 120.1  97 3.70 2.465 20.01  1  0    3    1
Cadillac Fleetwood 10.4   8 472.0 205 2.93 5.250 17.98  0  0    3    4
Valiant            18.1   6 225.0 105 2.76 3.460 20.22  1  0    3    1
Ferrari Dino       19.7   6 145.0 175 3.62 2.770 15.50  0  1    5    6
Merc 240D          24.4   4 146.7  62 3.69 3.190 20.00  1  0    4    2

train <- mtcars[-idx,]
train

                   mpg cyl  disp  hp drat    wt  qsec vs am gear carb
Mazda RX4         21.0   6 160.0 110 3.90 2.620 16.46  0  1    4    4
Mazda RX4 Wag     21.0   6 160.0 110 3.90 2.875 17.02  0  1    4    4
Datsun 710        22.8   4 108.0  93 3.85 2.320 18.61  1  1    4    1
Hornet 4 Drive    21.4   6 258.0 110 3.08 3.215 19.44  1  0    3    1
Hornet Sportabout 18.7   8 360.0 175 3.15 3.440 17.02  0  0    3    2
Duster 360        14.3   8 360.0 245 3.21 3.570 15.84  0  0    3    4
Merc 230          22.8   4 140.8  95 3.92 3.150 22.90  1  0    4    2
Merc 280          19.2   6 167.6 123 3.92 3.440 18.30  1  0    4    4
Merc 280C         17.8   6 167.6 123 3.92 3.440 18.90  1  0    4    4
 [ reached 'max' / getOption("max.print") -- omitted 18 rows ]

third_deg <- lm(wt ~ poly(disp,3), data = train)
summary(third_deg)$r.squared

[1] 0.8879368

predict(third_deg, test)

     Toyota Corona Cadillac Fleetwood            Valiant       Ferrari Dino
          2.633774           5.824101           3.418857           2.970499
         Merc 240D
          2.989188

test$third_pred <- predict(third_deg, test)
test

                    mpg cyl  disp  hp drat    wt  qsec vs am gear carb
Toyota Corona      21.5   4 120.1  97 3.70 2.465 20.01  1  0    3    1
Cadillac Fleetwood 10.4   8 472.0 205 2.93 5.250 17.98  0  0    3    4
Valiant            18.1   6 225.0 105 2.76 3.460 20.22  1  0    3    1
Ferrari Dino       19.7   6 145.0 175 3.62 2.770 15.50  0  1    5    6
Merc 240D          24.4   4 146.7  62 3.69 3.190 20.00  1  0    4    2
                   third_pred
Toyota Corona        2.633774
Cadillac Fleetwood   5.824101
Valiant              3.418857
Ferrari Dino         2.970499
Merc 240D            2.989188

fifteen_deg <- lm(wt ~ poly(disp,15), data=train)
summary(fifteen_deg)$r.squared

[1] 0.9550231

predict(fifteen_deg, test)

     Toyota Corona Cadillac Fleetwood            Valiant       Ferrari Dino
          2.644378        -844.610091           2.784157           2.761685
         Merc 240D
          2.745391

test$fifteen <- predict(fifteen_deg, test)

test[c("disp","wt","third_pred","fifteen")]

                    disp    wt third_pred     fifteen
Toyota Corona      120.1 2.465   2.633774    2.644378
Cadillac Fleetwood 472.0 5.250   5.824101 -844.610091
Valiant            225.0 3.460   3.418857    2.784157
Ferrari Dino       145.0 2.770   2.970499    2.761685
Merc 240D          146.7 3.190   2.989188    2.745391

Gördüğünüz gibi, “on beşinci derece” model veriyi ezberlemiş (yani aşırı öğrenme/overfittng göstermiş) ve kötü tahminler yapıyor.
